YEAPHI 3KW 48V/72v Driving Motor Brushless DC Motor for Zero Turn Lawn Mower Electric Motor Lawn tractor Driving motor for electric car 1-5kw BLDC Gear motor Battary powered Lawn mowers

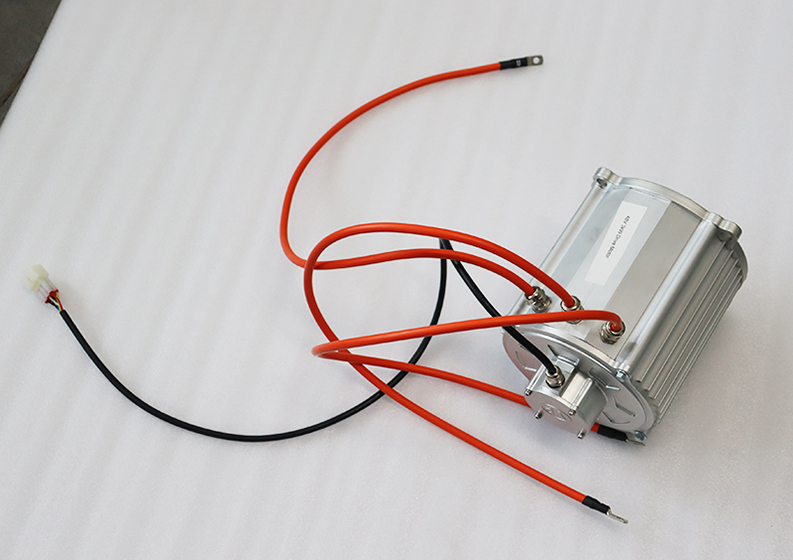

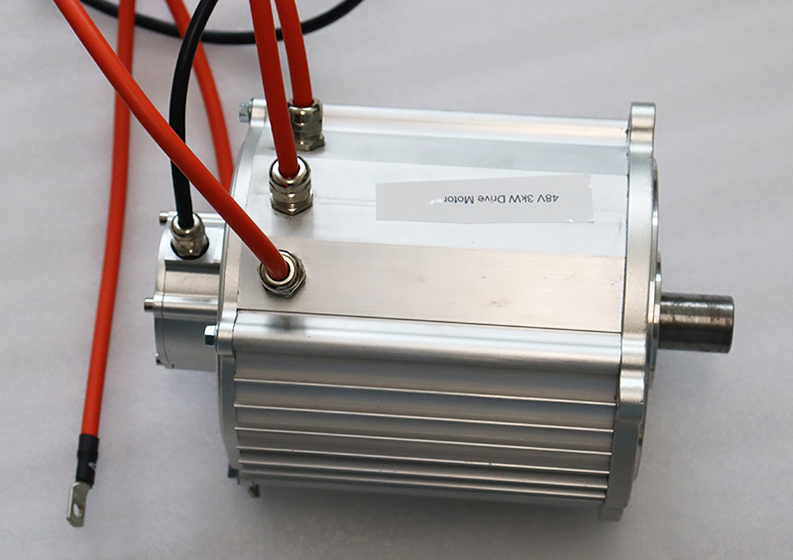

    • The 3kw 48v/72v drive motor is used for the ride on tractor Lawn Vehicle. It is used for lawn mower. We have 800W to 5.5KW motors and controllers used for battery-powered equipment.The applications of our products are Electric push lawn mower, Electric zero turn mower, and riding tractor, motor cycle etc.
    • There are about 27 years experiences in this industry. We are the specified supplier who cooperates with many famous customers in this industry for a long time, such as Greenworks, Ryobi, TTI, Alamo Group, Briggs&Stratton and Generac.
  • Large
  • application-1
  • application-2
  • application-(2)
  • application-(3)
mailCONTACT NOW pdfpdf Download

We provide you with

  • Free customized development.

  • Professional service-YEAPHI

    has 3 research and development centers that solve customers' technical challenges.

  • Excellent cost control

    based on high self-manufactured ratio.

  • Full compliance

    with IATF16949 standards.

  • Over 5 years' experience

    in electric lawn vehicle based on cooperating with RYOBI and Greenworks.

  • Products catalogue

    ● 800W-5.5KW blade controller.
    ● 800W-5.5KW blade motor.
    ● 800W-5.5KW driving controller.
    ● 800W-5.5KW driving motor.
    ● Angle sensor.

Product features

  • 01

    Application

      • Ride on Lawn mower, Lawn tractor, golf cart, motor cycle and small EV vehicles etc.
  • 02

    Parameters

      • 1. Compact design, water resistant, stainless steel shaft.
      • 2. Low noise, high torque, high reliability.
      • 3. Stepless speed control, dual-direction.
      • 4. Long working life (>20,000 hours).
  • 03

    Eletronic Parameters

      • 1. Rated voltage: 48/72(DC).
      • 2. Output power: 3kw.
      • 3. Motor torque:6.85 N.m, peak torque 17.
      • 4. Rated speed: 4200.
      • 5. IP level: IP 65.
      • 6. Leak current ≤3mA.
      • 7. Insulation level: H.
      • 8. Working method: S2.
  • 04

    Features

      • Riding lawnmower capacity increased, driving motor functioning enhanced. •Programmable isolation monitoring and fault detection.
      • With a rotor position detector, you may automatically adjust the frequency in response to a change in voltage.
  • 05

    Company Advantages

      • Based on collaboration with RYOBI and Greenworks, over 5 years of expertise with electric lawn tractors.
      • Free individualized development.
      • Great cost control supported by a large ratio of self-manufactured goods.
      • We fully adhere to IATF16949 regulations.

Specifications

Power Voltage Rated Torque Max torque Rated speed Working method IP level:
3KW 48/72V 6.85 N.m 17N.m 4200rpm S2  IP 65

Product Advantages

1. The motor rotates bidirectional.
2. Insulation level: H (Injection material level: F).
3. Leak current: Applied AC voltage between winding and iron core 1.8±0.1kv/3s, leak current ≤3mA.
  • pro_service

    Specifications

    1. Rated voltage: 48/72(DC).
    2. Output power: 3kw.
    3. Motor torque:6.85 N.m, peak torque 17.
    4. Rated speed: 4200.
    5. IP level: IP 65.
    6. Leak current ≤3mA.
    7. Insulation level: H.
    8. Working method: S2.

  • pro_service

    Products Advantage

    ►Small size, light weight, high output power.
    ►High efficiency, high relative density of output power and torque.
    ►The speed adjustment range is wide, and it can be operated in most working places.
    ►Simple structure, reliable operation and convenient maintenance.
    ►It has the characteristics of good low-voltage characteristics, strong torque load characteristics, large starting torque, and small starting current.
