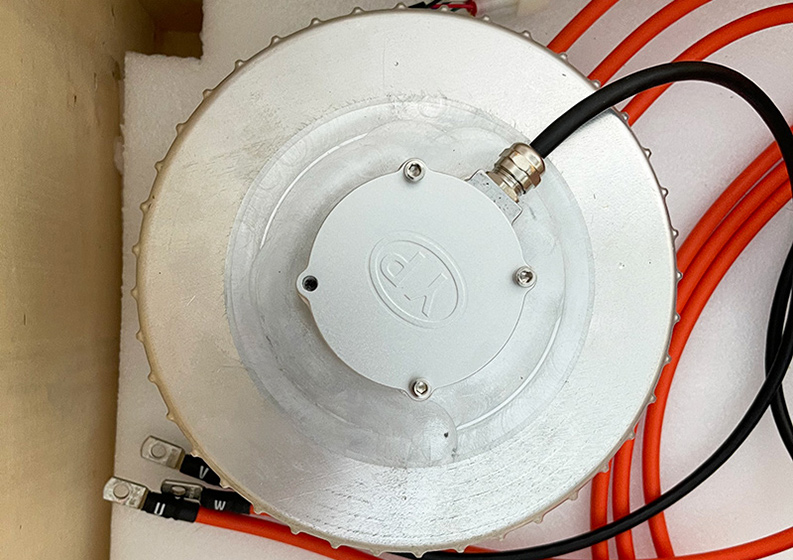

YEAPHI 5.5KW 48V/72v Driving Motor Brushless DC Motor for Zero Turn Lawn Mower Electric Motor Lawn tractor Driving motor for electric car 1-5kw BLDC Gear motor Battary powered Lawn mowers

    • The ride-on tractor lawn vehicle uses the 5.5 kw 48v/72v drive motor. It serves as a lawnmower. For battery-powered equipment, we employ motors and controllers ranging from 800W to 5.5KW. Applications for our products include riding tractors, motorbikes, electric push lawn mowers, and electric zero-turn mowers.
    • In this industry, there are around 27 years of experience. We are the designated supplier that has a long history of working with a number of well-known clients in this sector, including Greenworks, Ryobi, TTI, Alamo Group, Briggs & Stratton, and Generac.
  • Large
  • application-1
  • application-2
  • application-(2)
  • application-(3)
mailCONTACT NOW pdfpdf Download

We provide you with

  • Free customized development.

  • Professional service-YEAPHI

    has 3 research and development centers that solve customers' technical challenges.

  • Excellent cost control

    based on high self-manufactured ratio.

  • Full compliance

    with IATF16949 standards.

  • Over 5 years' experience

    in electric lawn vehicle based on cooperating with RYOBI and Greenworks.

  • Products catalogue

    ● 800W-5.5KW blade controller.
    ● 800W-5.5KW blade motor.
    ● 800W-5.5KW driving controller.
    ● 800W-5.5KW driving motor.
    ● Angle sensor.

Product features

  • 01

    Application

      • Ride on Lawn mower, Lawn tractor, golf cart, motor cycle and small EV vehicles etc.
  • 02

    Features

      • 1. Compact design, water resistant, stainless steel shaft.
      • 2. Low noise, high torque, high reliability.
      • 3. Stepless speed control, dual-direction.
      • 4. Long working life (>20,000 hours).
      • 5. Increased performance for riding lawnmower, improved functionality of driving motor.
        • ►Programmable isolation monitoring and fault detection.
        • ►With rotor position detector, can automatically control the frequency according to the voltage change.
  • 03

    Eletronic Parameters

      • 1. Rated voltage: 48/72(DC).
      • 2. Output power: 5.5kw.
      • 3. Motor torque: 14.6 N.m, peak torque 25.
      • 4. Rated speed: 3600.
      • 5. IP level: IP 65.
      • 6. Leak current ≤3mA.
      • 7. Insulation level: H.
      • 8. Working method: S1.
  • 04

    Features

      • Increased performance for riding lawnmower, improved functionality of driving motor.
      • Programmable isolation monitoring and fault detection.
      • With rotor position detector, can automatically control the frequency according to the voltage change.
  • 05

    Company Advantages

      • Over 5 years’ experience in electric lawn vehicle based on cooperating with RYOBI and Greenworks.
      • Free customized development.
      • Excellent cost control based on high self-manufactured ratio.
      • We are in full compliance with IATF16949 standards.

Specifications

Power Voltage Rated Torque Max torque Rated speed Working method IP level
5.5KW 48/72V 14.6 N.m 25N.m 3600rpm S1  IP 65

Product Advantages

1.The motor rotates bidirectional.
2. Insulation level：H (injection material level：F).
3. leak current：Applied AC voltage between winding and iron core 1.8±0.1KV/3S, leak current ≤3mA.
  • pro_service

    Specifications

    1. Rated voltage: 48/72(DC).
    2. Output power: 5.5kw.
    3. Motor torque: 14.6 N.m, peak torque 25.
    4. Rated speed: 3600.
    5. IP level: IP 65.
    6. Leak current ≤3mA.
    7. Insulation level: H.
    8. Working method: S1.

  • pro_service

    Products Advantage

    ►Small size, light weight, high output power.
    ►High efficiency, high relative density of output power and torque.
    ►The speed adjustment range is wide, and it can be operated in most working places.
    ►Simple structure, reliable operation and convenient maintenance.
    ►It has the characteristics of good low-voltage characteristics, strong torque load characteristics, large starting torque, and small starting current.
